Model
Specifications
|

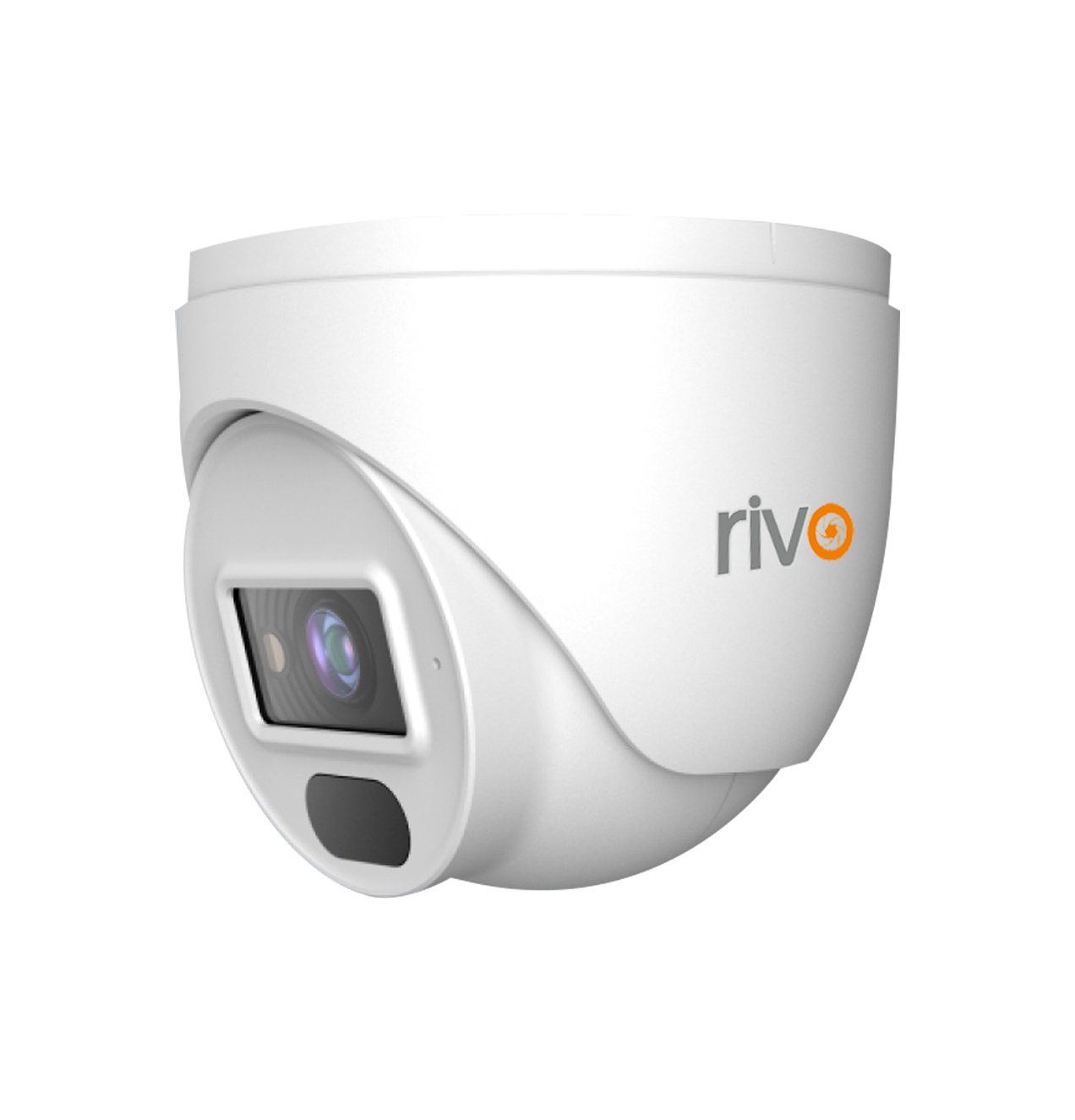

RV1720IP
|
|
Camera
|
|
Image Sensor
|
1 / 3"CMOS
|
|
Image Size
|
1920×1080
|
|
Electronic Shutter
|
1 / 3s ~ 1 / 100000 s
|
|
Iris Type
|
Fixed Iris
|
|
Min. Illumination
|
0.0462 lux @ F2.2, AGC ON;
0 lux with IR
|
|
Lens
|
2.8 mm @F2.2, H.FoV: 87°; V.FoV:48°; D.FoV:103°
3.6 mm @F2.2, H.FoV: 74°; V.FoV:41°; D.FoV:87°
|
|
Focus
|
Fixed
|
|
Lens Mount
|
M12
|
|
Wide Dynamic Range
|
Digital WDR
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
Defog
|
Yes
|
|
Digital NR
|
3D DNR
|
|
S/N Ratio
|
≥50dB
|
|
Angle Adjustment
|
Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°
|
|
|
|
Video Compression
|
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264
|
|
H.265 Compression Standard
|
Main Profile@Leve4.1 High Tier
|
|
Resolution
|
1080P (1920 × 1080 ), 720P (1280 × 720), D1, VGA(640 × 480 ), CIF, 480× 240
|
|
Main Stream
|
1080P/720P(60Hz: 1~30fps; 50Hz: 1~25fps)
|
|
Sub Stream
|
D1/VGA/CIF/ 480× 240(60Hz: 1~30fps; 50Hz: 1~25fps)
|
|
Bit Rate
|
64 Kbps ~ 4 Mbps
|
|
Bit Rate Type
|
VBR / CBR
|
|
Audio Compression
|
G711A/U
|
|
Image Settings
|
ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, image flip, image mirror, Sharpness, NR,etc. adjustable through client software or web browser
|
|
ROI
|
Each ROI to be configured separately
|
|
Interfaces
|
|
Network
|
RJ45
|
|
Video Output
|
No
|
|
Audio
|
1 CH built-in microphone
|
|
Storage
|
No
|
|
Reset
|
No
|
|
Functions
|
|
Remote Monitoring
|
Web Browser/TVT NVMS2.0/NVR/mobile APP
|
|
Online Connection
|
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
|
|
Network Protocol
|
IPv4,IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x,UPnP,HTTP,HTTPS,SNMP, QoS
|
|
Interface Protocol
|
ONVIF
|
|
Storage
|
Network remote storage
|
|
Smart Alarm
|
Motion detection
|
|
Intelligent Analytics
|
Region intrusion detection, video blur detection, scene change detection, abnormal color detection, line crossing detection
|
|
General Function
|
Watermark, IP address filtering, video mask, heartbeat, illegal login lock
|
|
PoE
|
Optional (IEEE802.3af )
|
|
IR Distance
|
10 ~ 20m
|
|
Ingress Protection
|
IP67
|
|
DORI Distance
|
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8mm
|
49m(161ft)
|
19m(62ft)
|
8m(26ft)
|
5m(16ft)
|
|
3.6mm
|
58m(190ft)
|
23m(75ft)
|
12m(39ft)
|
6m(20ft)
|
