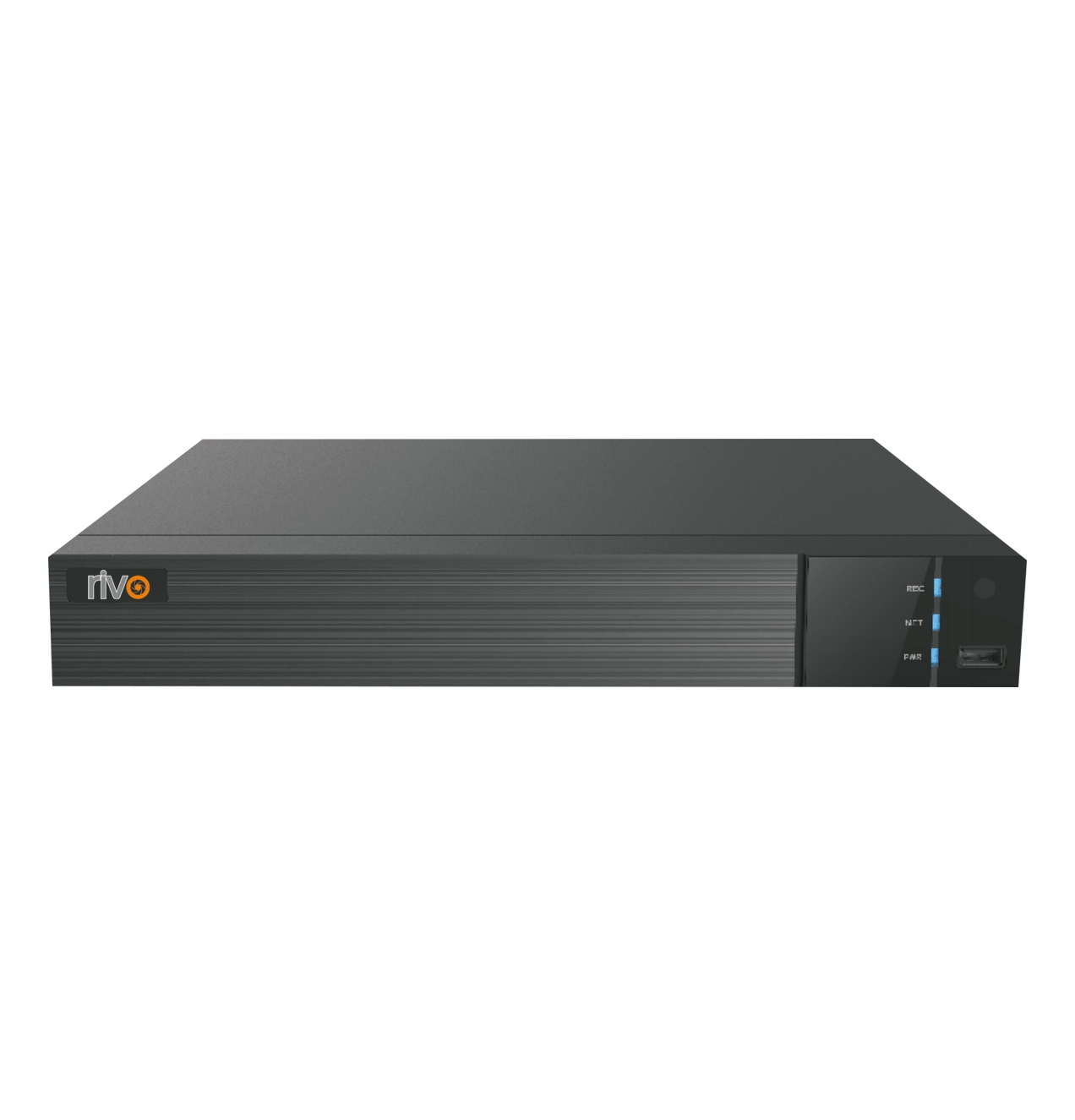

Model
|
RV-2616N
|
|
System
|
OS
|
Embedded Linux
|
|
Video
|
Network Input
|
16 CH IPC input
|
|
Network Input Resolution
|
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/
960H/D1/CIF
|
|
Output
|
HDMI × 1 : 3840× 2160 /1920 × 1080 / 1280 × 1024/ 1024 × 768
VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
|
|
Compression
|
H.265S / H.265+ / H.265 / H.264
|
|
Audio
|
Network Input
|
16 CH IPC audio input
|
|
2-way Audio
|
RCA × 1
|
|
Local Output
|
RCA × 1
|
|
Compression
|
G.711(U/A)
|
|
Live View
|
Decoding Capability
|
1CH 8MP;
4CH 1080P
|
|
Record
|
Record Stream
|
Dual stream recording
|
|
Resolution
|
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/
960H/D1/CIF
|
|
Frame Rate
|
N:30fps; P:25fps
|
|
Playback
|
Simultaneous Playback
|
Max. 16 CH
|
|
Search
|
Time slice / time / event / tag / smart search
|
|
Smart Search
|
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
|
|
Function
|
Play, pause, FF, FB, digital zoom, etc.
|
|
Alarm
|
Mode
|
Manual, sensor, motion, exception, smart events
|
|
Input
|
Supports IPC alarm input
|
|
Output
|
Supports IPC alarm output
|
|
Triggering
|
Record, snap, preset, e-mail, etc.
|
|
Network
|
Interface
|
RJ 45 1000Mbps × 1
|
|
Protocol
|
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc.
|
|
Incoming Bandwidth
|
112Mbps
|
|
Outgoing Bandwidth
|
112Mbps
|
|
Client Connection
|
Max. 10 users access
|
|
Mobile Device
|
OS
|
iOS, Andriod
|
|
Storage
|
HDD Interface
|
SATA3.0 × 1, max 8T
|
|
Backup
|
Local Backup
|
U disk, USB mobile HDD
|
|
Network Backup
|
Yes
|
|
Port
|
USB
|
USB 2.0 × 2
|
|
Remote
Controller
|
Optional
|
|
Others
|
Power Supply
|
DC 12V/1.5A
|
|
Consumption
|
≤ 10W ( without HDD )
|
|
Dimensions (mm)
|
300 × 249 × 45 ( W × D × H )
|
|
Working Environment
|
-10 ～ 50°C, 10% ～ 90% humidity
|
|
Certificate
|
CE, FCC
|
|
Environmental
Protection
|
Complies with Directive EU RoHS, REACH and WEEE
|
